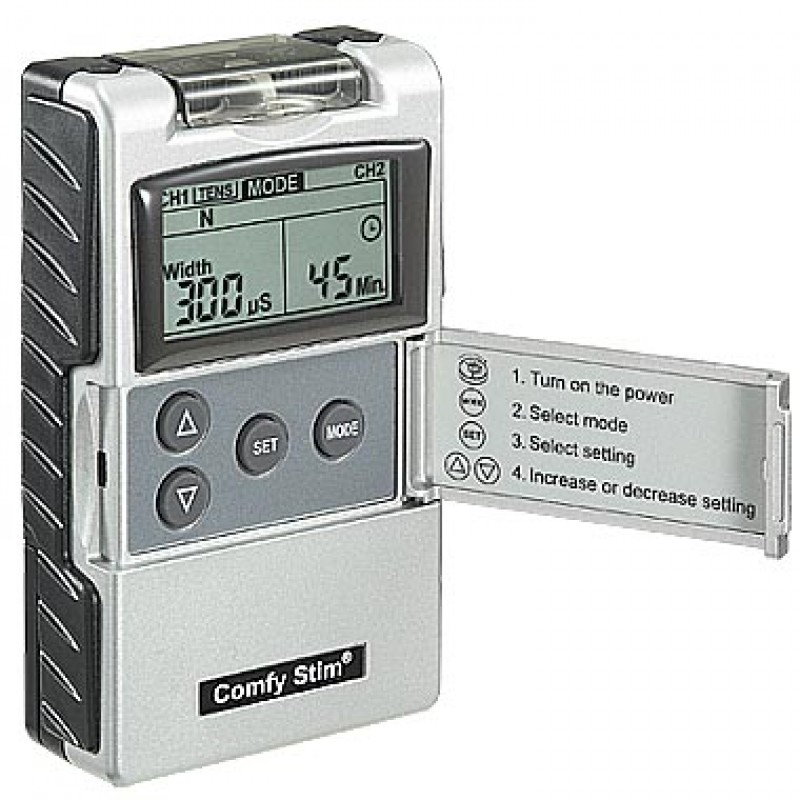

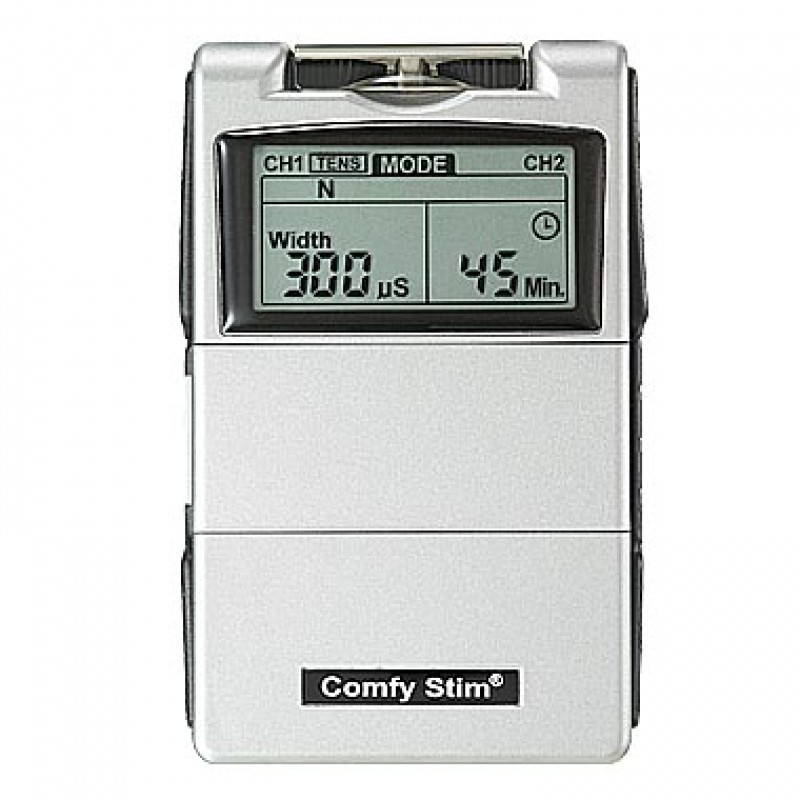

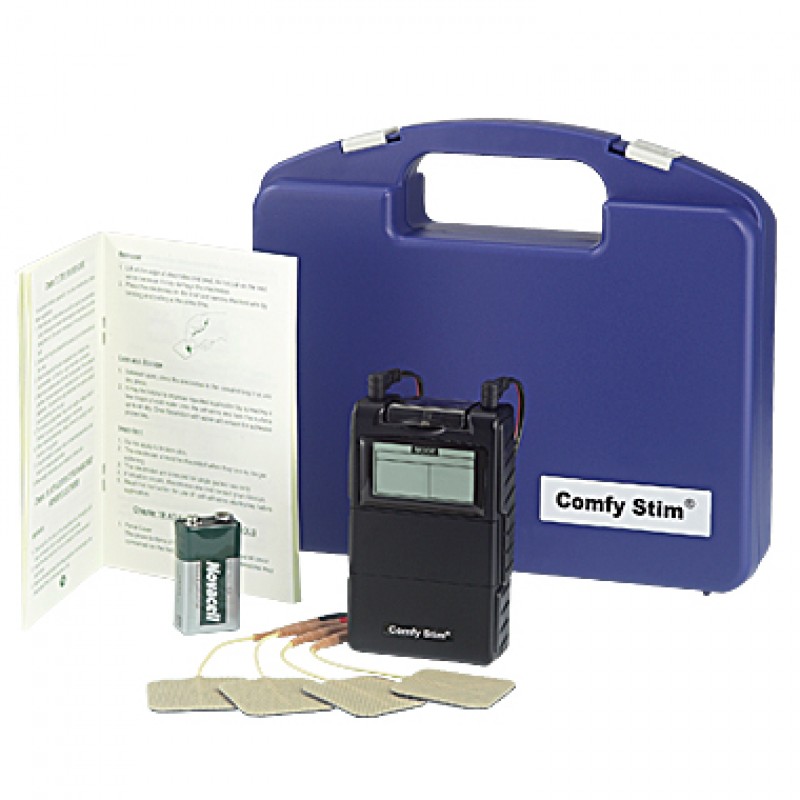

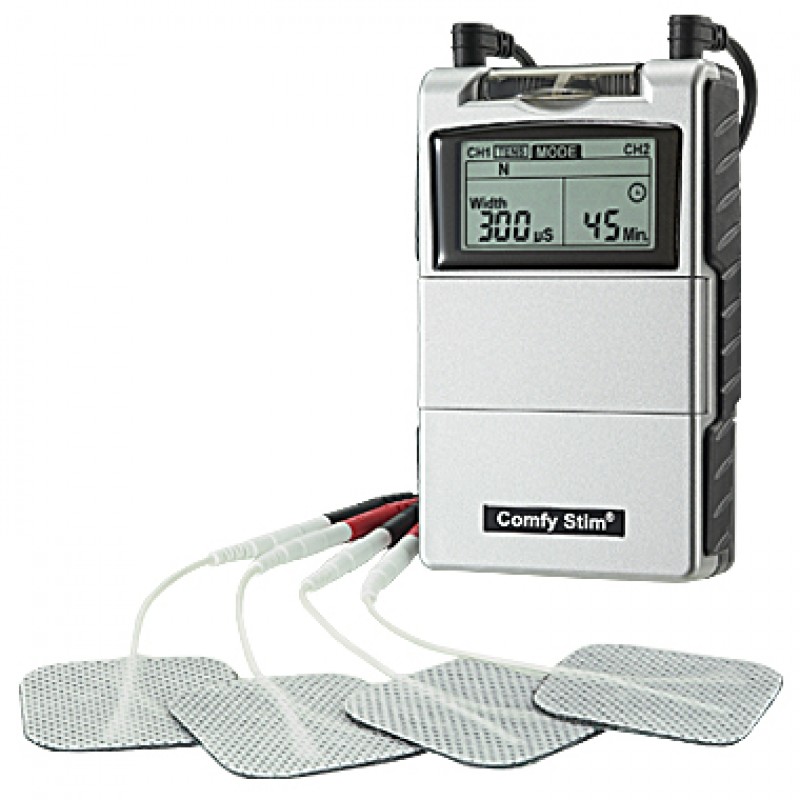

Herculife Comfy Stim Digital EMS / TENS

The Comfy Stim is a combination unit of TENS and EMS. It features 5 TENS modes and 2 EMS modes. The pulse width, pulse rate, ramp time, on time, off time and timer are fully adjustable. The user can identify if it is a TENS or EMS mode by the reading on the top of LCD.

Features:

• Flip top cover
• 5 TENS modes , 2 EMS modes
• Protective strips on both sides of unit
• Large LCD reading showing the settings
• Easy to use press buttons control
• Simple directions for use inside the cover
• Patient compliance meter up to 999 hours
• Storage of the last used settings
• Easy to open swing cover
• Unbreakable, stainless steel belt clip
• Treatment time countdown
• Low battery indicator

TENS:

• Modes: B, N, M, SD1, SD2
• Pulse Rate: Adjustable, from 2 to 150 Hz, 1Hz/Step
• Pulse Width: Adjustable, from 50 to 300 microseconds, 10µs/step
• Timer: Adjustable, from 5 to 60 minutes or Continuous.

EMS:

• Mode: S(Synchronous), A(Alternate)
• Ramp Time: Adjustable, 1~8 seconds, 1 Sec./ step,
• On Time: Adjustable, 2~90 seconds , 1 Sec./ step,
• Off Time: Adjustable, 2~90 seconds , 1 Sec./ step.
• Pulse Rate: Adjustable, 2~150 Hz , 1Hz / step.
• Pulse Width: Adjustable, 50~300µs , 10us / step.
• Timer: Adjustable, 5-60 minutes or Continue. Adjustable in 5 minutes each step.

Specifications:

• Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load.
• Wave Form: Asymmetrical Bi-Phasic Square Pulse
• Size: 10.1(L) x 6.1(W) x 2.45(H) cm
• Weight : 150 grams with battery.
• On Time: ustable, 2~90 seconds , 1 Sec./ step
• Off Time: Adjustable, 0~90 seconds , 1 Sec./ step
• Output Type: TENS and EMS
