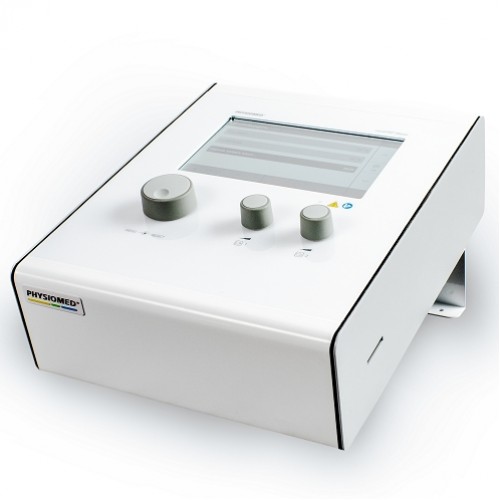

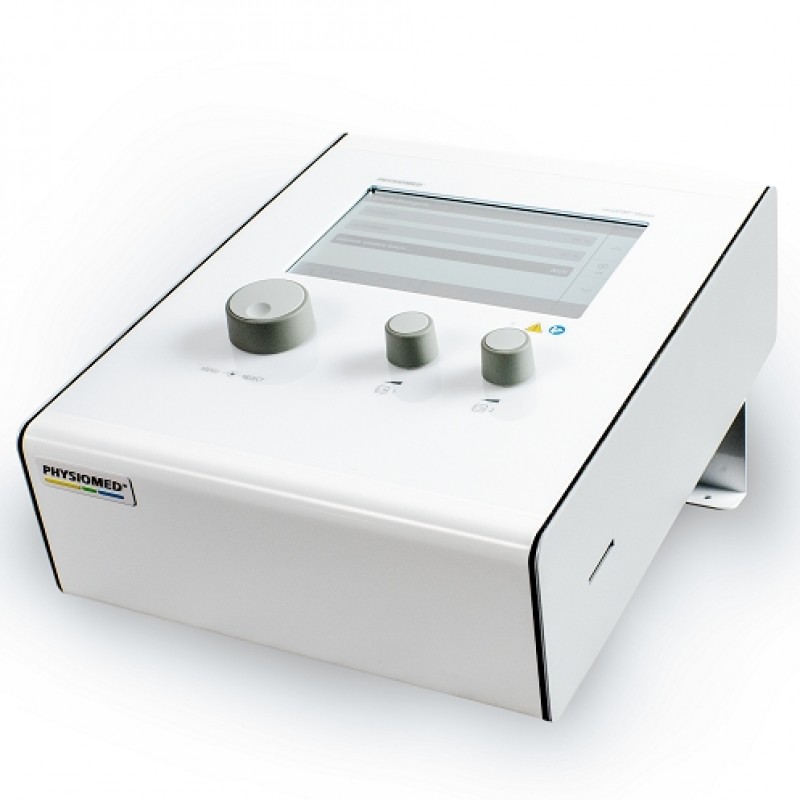

Physiomed VocaSTIM Master Dysphagia and Voice‐Speech Therapy Device
Professional therapy and diagnostic device for larynxparesis based voice and swallowing indications.
Developed for neuro-rehabilitation, ENT doctors and speech therapy
Product description

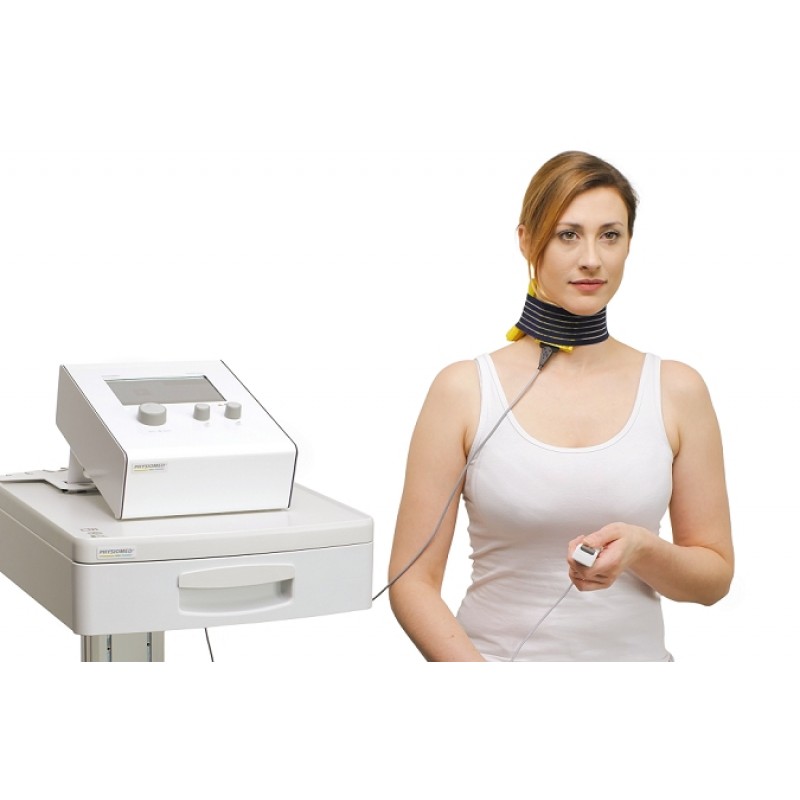

The vocaSTIM®-Master allows you a rapid automatised diagnosis of the degree of damage to the paretic musculature. The resulting optimum current treatment parameters are generated automatically and can be selected and determined using the comprehensive indications index, together with a variety of phonation exercises. Pictures of electrode application make therapeutic use easier.
The vocaSTIM® therapy uses electrical pulses based on natural stimulation patterns to assist the neuro-muscular unit responsible for swallowing and for voice formation.
- New currents for functional natural swallowing movement: T/R old (2-channel dysphagia current developed with the MHH / base of the mouth is stimulated first [CH1] then larynx levator[CH2])
- Integrated audio player built in with vocal- and tonal exercises
- Intuitive PHYSIOMED one-button operation
- Comprehensive overview of the therapy parameters
- Fastest therapy start: direct, through program memory, patient smart card or indications index
- Extensive treatment index featuring therapeutic information, dosage proposals and application graphics
- Guided, self-explaining diagnostics menu with automatic transfer of the value to the indication menu
- Patient database and potpourris
- Individual: personalized history
- Dual-channel technology (time alternating and synchronous)
- Color touch display
Technical data:
- IEC 60601-1 / VDE 750 Part1 protection class: I, type: BF
- CE certified Class IIa
- Mains supply: 100 – 240 VAC ± 10 %
- Mains frequency: 50 – 60 Hz
- Power consumption: 120 VA
- Current: 0.6 A / 1.2 A
- Mains fuses: at 100 – 240 VAC: T2AL, 250 V
- Dimensions (W x H x D): 315 x 175 x 370 mm
- Weight: 6.5 kg
Performance data – stimulation:
- Current form: Output data
- G: 5 mA / 500 ohm
- TENS, UR, IG30, IG50, FM, FaS, T/R, T/R sync, T/R old: 15 mA / 500 ohm
- Medium-frequency current forms (AMF, MT and KOTS): 20 mA / 500 ohm
