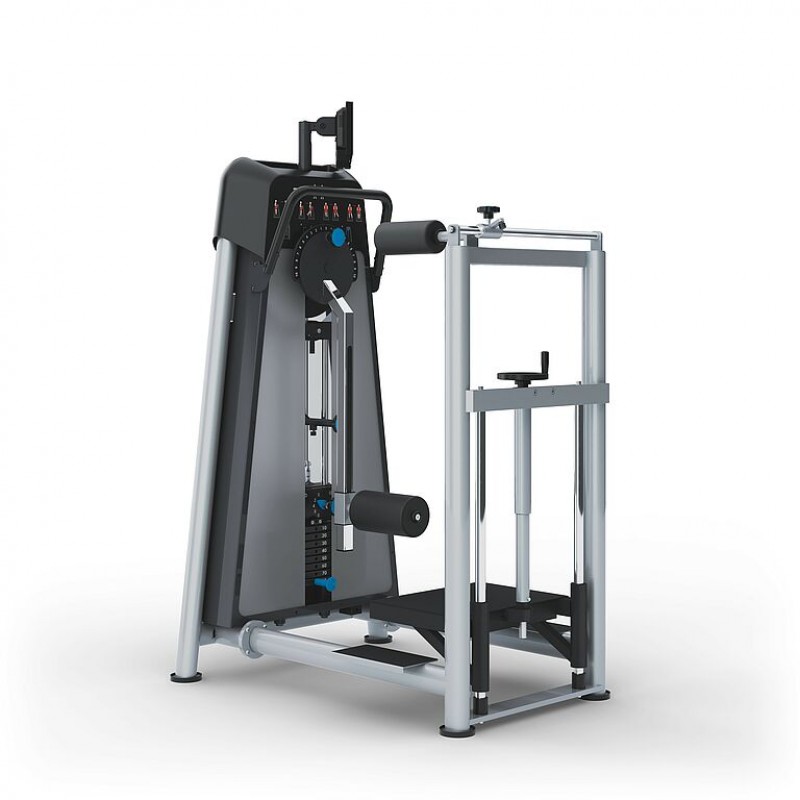

Proxomed Compass 540 Medical Multi Hip Training and Diagnostic Devices

Multi Hip

Specification

• Strength training for hip extension, flexion, ab-/adduction in standing position
• Tested safety in accordance with the European Medical Device Regulation (MDR)
• 0 to 80 kg training weight with 10 kg step increments
• Reproducible scaled positioning
• Start position adjustment from the training position
• Height-adjustable foot plate
• Steeples pelvic stabilization pad adjustment
• Lever arm length adjustment
• Weight block cover for protection

OPTIONS

• smart assist

• smart assist ISO
• Additional weight increments 4 x 2 kg
• Range of motion limiter
• 100 kg weight block (10 x 10 kg)

TECHNICAL DATA

• Dimensions (L/W/H): 144/98-204/168-195cm
• Total weight block: 80 kg (8 x 10 kg)
• Total weight: up to 271 kg
• User weight: max. 250 kg

Additional special features for precise training:

Stepless adjustment of the seat depth via pneumatic spring.

Fine weight increments of 1kg.

Ultrasound sensors for automatic weight detection.

Smart Assist Training and Diagnostic Software (Optional)

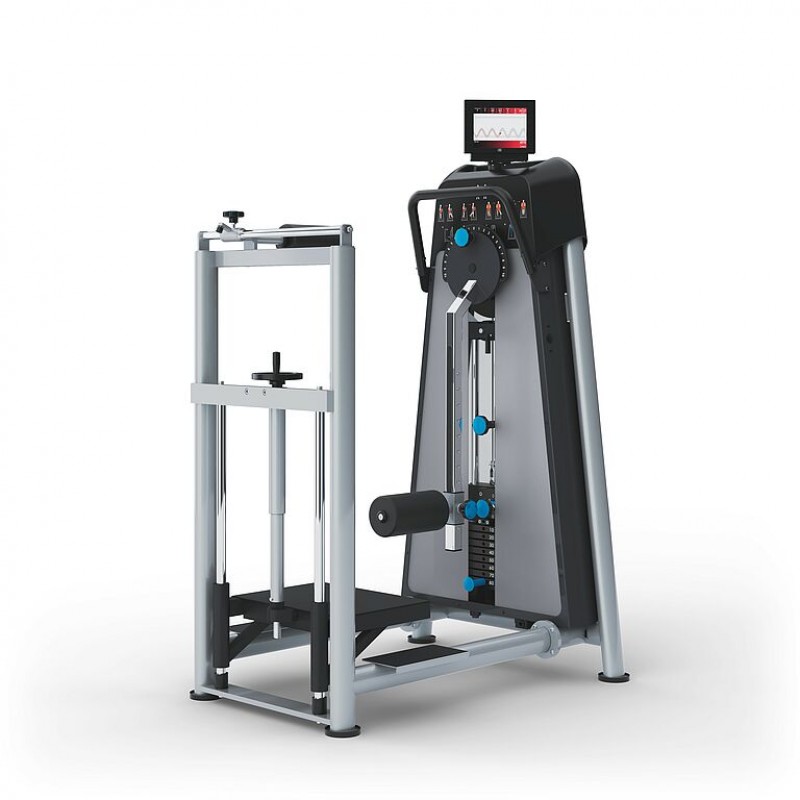

Proxomed equipment can be equipped with a 8” touchscreen with RFID detector and an on-screen software, that has following benefits:
1. Allow therapist to set programs, strength targets, concentric & eccentric motion curve, ROM limits for their patients.
2. To guide patient and provide biofeedback to the pa6ent while exercising.
3. To perform diagnostics test such as isometric strength test, ROM and sub-maximal test on patient.
4. To generate post training report for analysis on the connected PC

Concentric & eccentric strength and coordination scores (Green >90%, Yellow 80-89%, Red <80%)

Shows a detail results of patient ability to meet strength targets or follow the given curve of each repetition.

Maximum isometric strength level for diagnosing patient’s max force

Determining patients Range of Motion (ROM) of the joint.

Therapist can either set up to 5 individual concentric & eccentric movement curves for patient or auto patient adaptive curve.

Set patient’s individualized seat positioning in order ensure repetitive training results over many trainings

Proxotrain PC Station for Training Planning And Patient Management (Optional)

Isometric measurement strength test of a patient can be analysed on the the PC software

Features:

• Planning and control of strength and endurance training
• Comprehensive documentation of test and training results
• Test/retest comparison
• Right/left comparison
• Agonist/antagonist comparison
• Automated, progressive training planning
• Notice of ongoing training plans
• RFID card system for immediate transfer of training data and patient profile

Our new compass 540 line has an optimal selection of medical equipment for training the upper and lower extremities as well as the back. This give users and patients the range they need for their own individualised training. Robust and user-friendly – a great investment for your rehab centre.

• Excellent price-performance ratio
• Multipurpose: Use for prevention, rehabilitation, geriatrics, professional sports
• Time and space-saving
• Customer-friendly - Large selection of equipment
• Made in Germany - Quality and expertise assured
• Individualisable settings and features adapts to the patient for effective training
• Networkable - Optional integration into the training control system
• Certified - Manufactured to meet medical device requirements
